Description

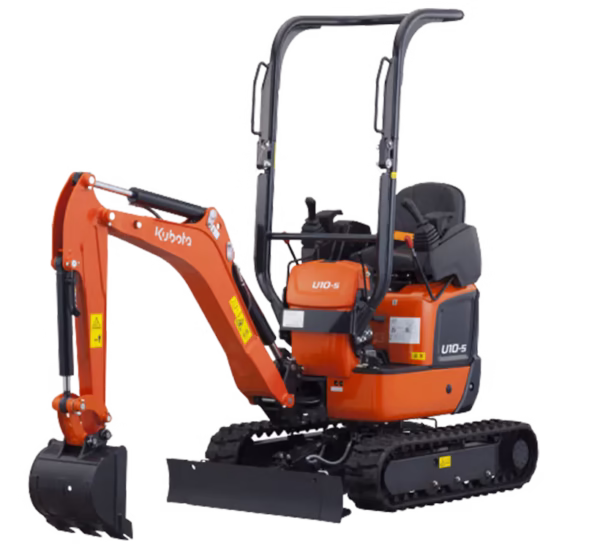

Model U10-5
Machine Weight (kg) 1125
Power (kW/hp) 7.6 / 10.3
Max Speed (km/h) 2.0/ 4.0
Max Dig Depth (mm) 1800
Max Reach (mm) 3330
Max Digging Force Arm/Bucket (kN) 5.4/10.4
Aux Flow 1 21 l/min @ 175 kgf/cm2
Aux Flow 2 _
Overall width (mm) 750 to 990
Transport height (mm) 2980
IMPRESSIVE POWER

The Stage V compliant, 10.3 PS D722-E4-BH-2EU Kubota E-TVCS engine at the heart of the U10-5 is designed to maximise power, minimise fuel consumption and emissions to deliver all the power you need to take a wide range of onsite tasks.
SMOOTH HYDRAULICS

The U10-5’s hydraulic servo control system means smoother operation, improved feel, and and increased digging productivity.
BUILT-IN VERSATILITY

An adjustable track and zero-tail swing provide versatile access and safe productive working in restricted spaces.
DEPENDABLE PERFORMANCE

Powerful engine and two-speed travel for easier, smoother movement between working locations on site.
EASE AND COMFORT

Ergonomic operator’s area designed for easy use, all-round vision and comfort.

BUILT-IN SAFETY

The U10-5 comes with a host of features as standard, from a seat belt alarm to a range of safety locks for enhanced operational features.
