Description

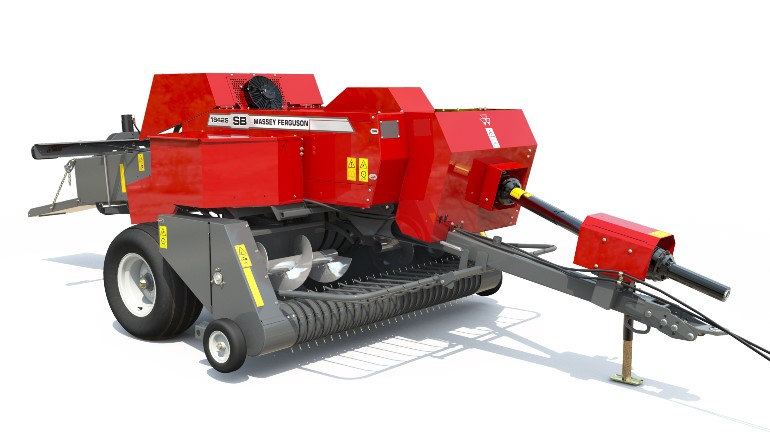

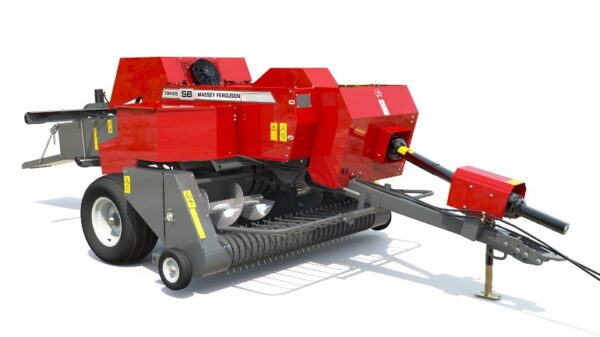

MF 1842S key features
New intake increases capacity by up to 20% compared with MF 1840
Up to 20% higher density than the MF 1840 baler
Completely new, substantial heavy-duty driveline, high inertia flywheel, gearbox and plunger
Heavy-duty, low profile pick-up based on large square baler design
High capacity dual feeding forks increase processing capability
Well-proven Rasspe knotters deliver reliable performance
Longer OptiForm bale chamber.
Heavy-duty components boost capacity
Well proven on existing balers sold in the USA, the heavy-duty chassis and frame are the strong foundations around which the new MF 1842S is built. Designed to handle high loads this provides the excellent strength and reliability required to meet high output demands.

PTO power is transmitted via a new primary shaft with mid-mounted support, which ensures it remains perfectly in line with the drawbar at all times. A significantly heavier duty slip clutch protects the driveline and delivers 20% more torque than the existing MF 1840 design.

At 673mm in diameter, the new high inertia flywheel is 21% larger and 22% heavier than that used on the smaller in-line baler. This delivers smooth efficient operation by maintaining consistent speeds as well as reducing the power requirement and surges.

The MF 1842S gearbox is specifically engineered to handle more power and high baling loads. Proven on high capacity balers sold in the USA, it has a great reputation for its reliability and long service life.

Stronger, dependable plunger
Working at 100 strokes/min, the new plunger not only delivers the higher performance required, but also makes consistently high quality, dense bales. Eight, heavy-duty bearings, are up to 51% wider and 25% larger in diameter than those on the MF 1840 and are specified to support the high loads to ensure upmost reliability.

At the same time the plunger stroke is over 24% longer, which helps to increase torque and reduce the power requirement. A new 33.8kg counterbalance, mounted on the drive arm, evens out peak loads on the tractor and maintains consistent plunger speed, as well as helping to improve efficiency.

High capacity pick-up
Inherited from the highly regarded MF 185 large square baler, the 1.98m wide (DIN) pick-up comes with a great reputation. Equipped with a high speed reel, which operates at 145rpm (37% faster than the MF 1840), this feeds the crop to two large, 330mm diameter cross augers. Together they offer exceptional feeding capacity to boost productivity.

Incoming crop is fed into a new, tapered feeding chute that boosts capacity and smoothly controls the flow. At 735mm, the front opening is 83% wider than before, providing 44% greater feed area to deliver a completely unhindered material flow.

Crop is gathered by an improved, six-tine high capacity crop feeding system, which features two rows of dual forks, which are equipped with three tines. This strong system, used on balers sold in the USA, delivers significantly high outputs with straightforward and dependable operation.

From here crop moves to a new pre-forming chamber. Increased in volume by more than 75%, over existing designs, it provides substantially more capacity to handle the baler’s capability to process higher throughputs.

Robust, reliable knotters
To match the baler’s high performance Massey Ferguson specifies heavy-duty and reliable Rasspe knotters on the new MF 1842S baler. Made from well proven components, these deliver superb, dependable operation and are capable of working with many different types of twine.

The knotters are made from hard-wearing nickel plated components, which resist corrosion and wear to maintain reliability and durability. Centralised greasing, which is standard, reduces maintenance requirements and further prolongs component life and enhances resale values.

An electrical cleaning fan is fitted as standard. This continually blows over the knotters to keep them clear of dust and debris, which helps to reduce downtime. The system automatically stops every after 15 minutes and reverses the fan to clear away any builds-ups before resuming.

Well shaped, consistent density bales
Bales are formed in the OptiForm bale chamber, which is 100mm (5%) longer than before. Density is set using an on-board hydraulic system that applies pressure to rails on the top and sides of the chamber.

Once set, by adjusting the pressure on a dial, the system automatically reacts to changes in crop conditions, maintaining consistent bale weighs even if the crop moisture content varies.

Resistor doors, fitted to each side of the chamber, are used to alter the side pressure as the bale is forming. These can be adjusted from the outside and with crop in the chamber. Adjusting the doors helps to improve bale consistency and generate greater density.

Two cast bars, supplied as standard, can also be mounted inside the chamber to further boost density in softer crops, such as straw.
