Description

Description

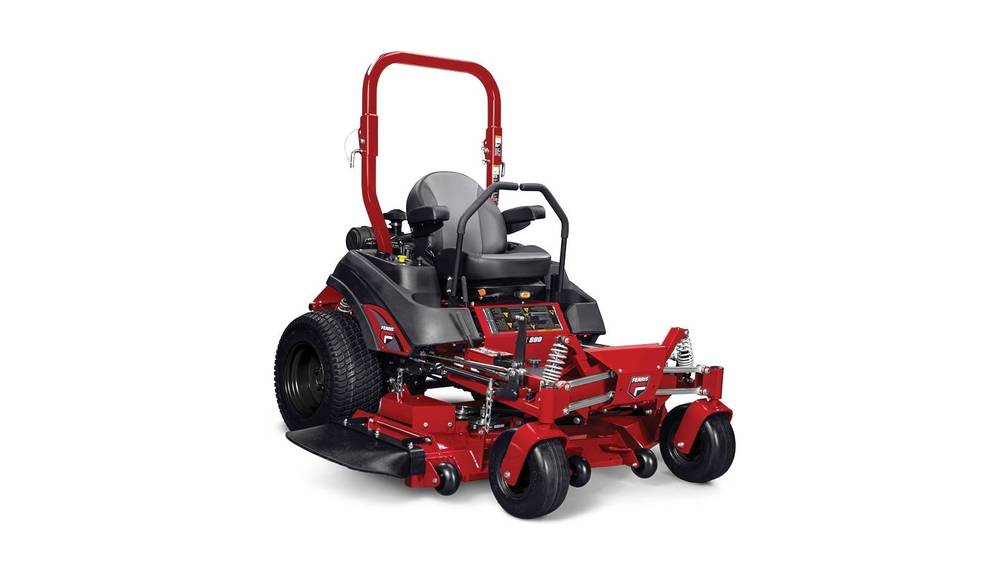

Affordable Commercial Zero Turn With Next Generation Ferris Suspension Technology

The ISX™ 800 is engineered to increase efficiency and comfort. Combining next-generation Ferris® technology – ForeFront™ Suspension with a 2-belt iCD™ Cutting System, means a smoother ride and improved cut.

Features
ForeFront™ Suspension System: The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
EFI-ETC Engine Technology: Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.
Integrated Transmission: Commercial Hydro-Gear® ZT-3400™ transaxles, with 7″ cooling fans, are designed for high performance and are fully serviceable.
Easy Access: Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
iCD™ Cutting System: iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).
Mower Spindles: Cast-aluminum greaseable spindles feature 1″ shaft with 2.5″ x 1″ dual ball bearings with top access grease fittings and pressure relief valve.
Ride-On Mower Warranties
Miles per Hour: Up to 10 MPH ground speed, reverse 5 MPH.
Specifications
Model Number: 5902072
Engine Brand: Briggs & Stratton® CXi Series EFI-ETC
Engine Power Rating *: 27
Displacement (cc): 810
PTO: Electric
Cylinders: 2
Starter: Electric
Fuel Type: Gasoline
Fuel Tank Capacity (gal): 5.5
Hour Meter/Instrumentation: Dual-function hour meter, fuel level gauge in tank
Cutting Width (in): 60
Cutting Height (in): 1.5 – 5
Spindles: Aluminum Greaseable
Deck Construction: iCD™ Cutting System, 2-Belt
Suspension: ForeFront™ Suspension System
Transmission: Dual commercial Hydro-Gear® ZT-3400® transaxles with 7″ cooling fans
Drive Axles (in): 1.125
Caster Tires (in): 13 x 6.5-6
Drive Tires (in): 23 x 10.5-12
Ground Speed-Fwd (mph): 0-10
Ground Speed-Rev (mph): 0-5
Overall Length (in): 81
Overall Width (in) Deflector Down/Deflector Up: 74/65
Dry Weight (lbs): 1268
Seat Package: Mid-back suspension seat with adjustable arm rests
Certified Roll-over Protection System: 180° foldable
Controls / Safety Group: Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls.
Parking Brake / Safety Circuit: Hand operated Internal transaxle brake
Warranty (Engine) †: 3-Year limited manufacturer’s warranty
Warranty (Balance of Machine) †: 4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator’s manual for complete details.
Engine Configuration: Briggs & Stratton®
