Description

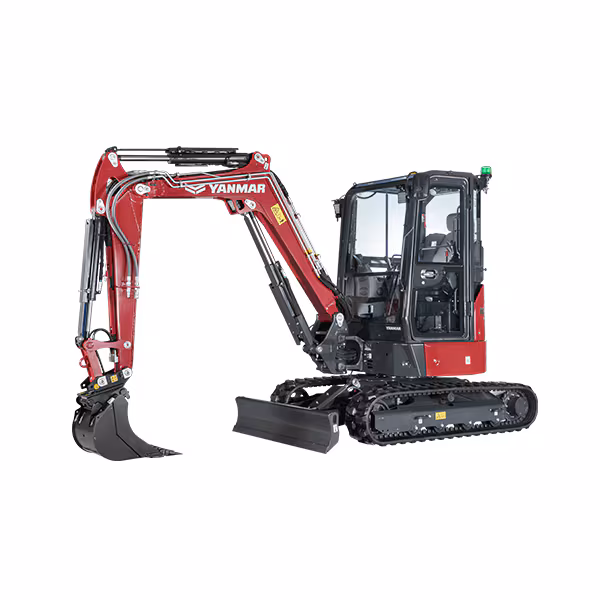

The ViO33-7 is a smart and compact jobsite solution which stands out by ensuring that neither the counterweight nor the front part of the upper frame extends beyond the track width. This results in an exceptionally small turning radius, making it ideal for confined spaces. Its improved boom swing enhances both versatility and compactness, allowing for a better working range. This unique design philosophy maximizes maneuverability without compromising stability, ensuring superior performance in tight spaces.
Specifications ViO33-7
Weight Transport weight 3090 kg (canopy) / 3210 kg (cabin)
Operating Weight 3265 kg (canopy) / 3390 kg (cabin)
Engine Type 3TNV88-ESBV2
Fuel Diesel
Net Power 18.5 kW / 24.8 HP (at 2200 rpm)
Gross Power 18.9 kW / 25.3 HP (at 2200 rpm)
Displacement 1.642 l
Max Torque 85.5 – 94.5 N.m (at 1320 rpm)
Starter 12 V / 1,7 kW
Battery 12 V / 55 Ah
Alternator 12 V / 55 A
Hydraulic System Maximum Pressure 206 bars
Working Pump 1 double variable displacement piston pump / 1 gear pump / 1 gear pump
Max Flow 2 x 37.9 l/min + 26.7 + 10.04 l/min
Hydraulic Tank 30.2 l
Performance Travel speed 2.9 / 4.8 km/h
Rotation Speed 9.4 rpm
Digging Force (arm) 18.6 kN / 16.8 kN (Short arm / Long arm)
Digging Force (bucket) 30.7 kN
Traction Force 21 kN
Noise level (2000/14/CE & 2005/88/CE) Lwa: 93 dBA / Lpag: 82 dBA
Fuel Tank 44 l
